stainless steel hex nuts manufacturer

View stainless steel hex nut dimensions, manufacturer of stainless steel hex nut ring, Heavy Hex Nut and slotted hex nuts

A Hex Barrel Nut is a fastener produced with a threaded hole. Stainless steel Thin Hex Nuts are almost always used together with a mating bolt. Together these components aid in fastening multiple parts together.

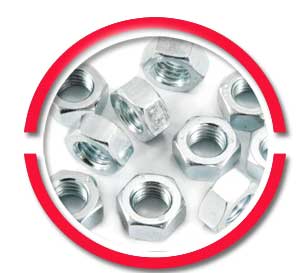

Stainless Steel Hex Nut
Stainless Steel Hex Nut
stainless steel hex nut ring
stainless steel hex nut ring

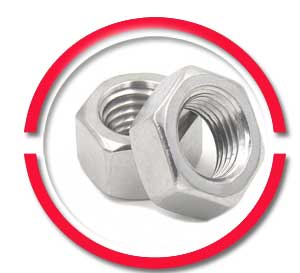

SS Heavy Hex Nut
SS Heavy Hex Nut

The two partners i.e. 316 stainless steel hex nuts along with the bolt are kept together by due to the occurrence of their threads’ friction. Due to friction, there is a slight elastic deformation noticed in the stainless steel hex nut m8, along with a  slight stretching of the bolt. This combination causes a compression of the parts, which cause them to be held together.

Hexagon nut or as shortened as Stainless Steel Heavy Hex Nut are six sided fasteners. Generally, a stainless steel hex nuts manufacturer would refer to them as either finished hex nuts or as hex full nuts.
Lock washers may be used in conjunction with a Stainless Steel Hex Nut and Bolt.Often the threads of the stainless steel hex nut ring are conventionally right-handed, these threaded nuts could also be Left-handed. These threaded stainless steel slotted hex nuts could be produced either in a unified inch coarse series (UNC, Unified National Coarse) or in a  Unified inch fine series(UNF, Unified National Fine).
The size of the stainless steel metric hex nuts refers to its nominal thread diameter. Typically, the size range in which the 304 Stainless Steel Hex Nuts have been produced ranges between ¼ inch to about 2 ½ inches.



dimensions schedule of UNC Heavy hex nut
UNC Nut N/B
Max Across Corners
Min Across Corners
Max Thickness
Min Thickness
Max Across Flats
Max Across Flats
3/8
20.2
19.4
9.6
8.7
17.5
17
7/16
22
21.1
11.2
10.2
19
18.5
1/2
25.6
24.6
12.8
11.8
22.2
21.6
9/16
27.5
26.3
14.4
13.4
23.8
23.1
5/8
31.2
29.8
16
14.9
27
26.2
3/4
36.7
35.1
19.3
18
31.8
30.8
7/8
42.2
40.4
22.5
21.2
36.5
35.4
1
47.7
45.6
25.7
24.3
41.3
40
1 1/8
53.2
50.8
28.9
27.4
46
44.6
1 1/4
58.6
56.1
31.8
30.1
50.8
49.2
1 3/8
64.2
61.4
35
33.3
55.6
53.8
1 1/2
69.6
66.6
38.2
36.4
60.3
58.4
1 5/8
75.2
71.8
41.5
39.5
65.1
63
1 3/4
80.6
77.1
44.7
42.6
69.9
67.6
1 7/8
86.2
82.3
47.9
45.8
74.6
72.2
2
91.6
87.6
51.1
48.9
79.4
76.8
2 1/4
102.6
98.1
57.2
54.7
88.9
86.1
2 1/2
113.6
108.6
63.6
61
98.4
95.2
2 3/4
124.6
119.1
70.1
67.2
108
104.4
3
135.6
129.6
76.5
73.5
117.5
113.7



Dimensions chart of Stainless Steel hex nut

ISO Heavy hex nut dimensions

ISO Nut NB
Across Corners
MAX Thickness
MIN Thickness
MAX Across Flats
MIN Across Flats
M 8
14.38
6.8
6.44
13
12.73
M 10
17.77
8.4
8.04
16
15.73
M 12
20.03
10.8
10.37
18
17.73
M 14
23.35
12.8
12.1
21
20.67
M 16
26.75
14.8
14.1
24
23.67
M 18
29.56
15.8
15.1
27
26.16
M 20
32.95
18
16.9
30
29.16
M 22
37.29
19.4
18.1
34
33
M 24
39.55
21.5
20.2
36
35
M 27
45.2
23.8
22.5
41
40
M 30
50.85
26.6
24.3
46
45
M 33
55.37
28.7
27.4
50
49
M 36
60.79
31
29.4
55
53.8
M 39
66.44
33.4
31.8
60
58.8
M 42
71.3
34
32.4
65
63.1
M 45
76.95
36
34.4
70
68.1
M 48
82.6
38
39.4
75
73.1
M 52
88.25
42
40.4
80
78.1
M 56
93.56
45
43.4
85
82.8
M 60
99.21
48
46.4
90
87.8
M 64
104.86
51
49.1
95
92.8
M 68
110.51
54
52.1
100
97.8
M 72 x 6
116.16
58
56.1
105
102.8
M 76 x 6
121.81
61
59.1
110
107.8
M 80 x 6
127.46
64
62.1
115
112.8



Check stainless steel hex nut specifications, Suppliers of Stainless Steel Hex Nut and Bolt and metric hex nuts, 304 Stainless Steel Hex Nuts



standards and specifications of stainless steel Hex Nuts
Grade 18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Hex Nuts
DIN standard DIN 934, DIN 982, DIN 985, DIN 936, DIN 929, DIN 1587, DIN 439, DIN 315
British standards BS 57
Stainless Steel Hex Nuts Size
  • Cold Froging : M2-M24
  • Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg
  • Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg

Stainless Steel Hex Nuts M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes
Length 3 mm to 200 mm
Stainless Steel Threads: Metric, Metric Fine, BSW, UNF, UNC, BA, BSF and BSCY (cycle) threads or as required
Standard:
  • ISO 4035
  • ISO 14585C ~DIN 7981C
  • DIN 7973C ~ISO 1483
  • DIN 7983C ~ISO 7051
  • ANSI B18.3.1M
  • ASME B18.6.3
  • GB/T5782, GB/T5783, GB5783

DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards
ANSI – American National Standards Institute
DIN Standard B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985
UTS – Unified Thread Standard UNC, UNF, UNEF, UNS, NPT, NPTF
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Tolerance +/-0.01mm to +/-0.05mm
Head drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Type Pan/ Round/ Oval/ countersunk/ Truss head
Head Pan head, flat head, oval head, hex head, phillips head
Finishing: Zinc (yellow, white, blue, black), black oxide
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Finish Per ASTM A380/A380M
Production process Wire DraHex, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Origin and service-region: European
Origin of Stainless Steel Hex Nuts are Western European. However projects with eastern origin are possible on request.
Surface Coating:
  • Ptfe Coated Hex Nuts
  • Hot Dipped Galvanizing Hex Nuts
  • Phosphate Hex Nuts
  • Teflon Hex Nuts
  • Xylon Hex Nuts
  • Zinc Phosphate Hex Nuts
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium Hex Nuts

All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.
Surface treatment
  • Polish
  • Passivation
  • Anodizing
  • Sand blasting
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
  • Black oxide coating
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Top Manufacturers SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc.
Stainless Steel Hex Nuts Packing: IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Why choose us?
  • Best Price in China and compare to China
  • Professional technical team
  • High precision threads
  • Strong production line
  • High Temperature Fasteners Inc. will be your reliable partner
MOQ 5 pieces
Test Certificate:
  • Manufacturer Test Certificate as per EN 10204 / 3.1,
  • Tensile testing to ISO 898-1
  • Nut proof load testing to ISO 898-2
  • Suitability for preloading to EN 14399-2
  • Suitability test for calibrated preload to EN 14399-10
  • Charpy Impact testing in accordance with ISO 148-1
  • Hardness testing to ISO 6508-1
  • Tri-Roll Thread Comparators
  • Calibrated gauges and tools
Free Samples Yes
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Other available material
  • Stainless Steel Hex Nuts: SUS201, SUS304, SUS316, SUS410
  • Brass Hex Nuts: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
  • Bronze Hex Nuts: C51000, C52100, C54400 etc
  • Aluminum Hex Nuts: Al6061, Al6063 etc
  • Aluminum Alloy Hex Nuts: Al6061, Al6063 etc
  • Titanium and Titanium Alloy Hex Nuts: TAD, TA1-TA8, TB2, TC1-TC10
  • Alloy steel Hex Nuts: SCM435, C10B21, C10B33
Uses & application Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry



the oldest exporter of 316 stainless steel hex nuts, buy stainless steel hex nut m3 and m8 at lowest price

Price List of Stainless Steel Hex Nuts
Stainless Steel Hex Nuts Pri ce in China
(Thread Direction Right Hand)
Thread Size
18-8 Stainless Steel Hex Nuts Price
316 Stainless Steel Hex Nuts Price
#6-32
$45.11 / pkg. of 100
$33.68 / pkg. of 50
#6-32
$45.11 / pkg. of 100
$33.68 / pkg. of 50
#8-32
$45.22 / pkg. of 100
$36.05 / pkg. of 50
#10-24
$45.32 / pkg. of 100
$36.98 / pkg. of 50
7/16″-14
$19.42 / pkg. of 25
$22.04 / pkg. of 25
5/8″-11
$30.59 / pkg. of 25
$35.64 / pkg. of 25
3/4″-10
$35.23 / pkg. of 20
$41.51 / pkg. of 20
7/8″-9
$13.49 / pkg. of 5
$15.91 / pkg. of 5

Please note this is an approx Cost of 3/4 SS Hex Nut, in China. For final Hex Nut And Lock Nut price list please mail us.



india’s largest stainless steel hex nuts 5/16, stainless steel Thin Hex Nuts and Hex Coupling Nut suppliers



Material Specification of Nuts as per British Standard
BS 1083 Thin Hex Jam Nut
BS 1083 Hex Nut
BS 1083 Full Hex Nut
BS 1083 Hex Hexing Nut with Nylon Insert (Type T)
BS 1083 Hex Hexing Nut with Nylon Insert (Type P)




Most Selling types of Fasteners Weight Chart



keep bulk stock of stainless steel Hex Barrel Nut, Hex Cap Nut, Hex Castle Nut, Hex Clinch Nut



Bulk Stock of Stainless Steel Hex Nuts in various material garde
  • 316 Stainless Steel Ambihelical Hex Nut
  • 18-8 Stainless Steel Heavy Hex Nut
  • 347 Stainless Steel Hex Nut And Lock Nut
  • 4.8 Hex Castle Nut
  • 17-4 PH Hex Connector Nut
  • 18-8 Stainless Steel Hex Barrel Nut
  • 304 Stainless Steel Hex Dome Nut
  • 304H Stainless Steel Hex Coupler Nut
  • 317L Stainless Steel Hex Nut Sleeve Anchor
  • A193 B6 (410) Hex Coupling Nut
  • 316L Stainless Steel Hex Panel Nut
  • A4-70 Hex Acorn Nut
  • A4 Hex Cap Nut
  • A193 B8T (321) Hex Clinch Nut
  • 316H Stainless Steel Hex Insert Nut
  • 904L Stainless Steel Hex Acorn Nut
  • Duplex 2205 Hex Jam Lock Nut
  • A193 B8C (347) Ambihelical Hex Nut
  • A4-80 Heavy Hex Nut
  • 310 Stainless Steel Hex Head Cap Nut
  • 8.8 Hex Head Rivet Nut
  • A2 Hex Flange Nut
  • 304L Stainless Steel Hex Head Nut
  • 316 Stainless Hex Machine Screw Nut
  • A2-70 Hex Extension Nut
  • 317 Stainless Steel Hex Jam Nut
  • 410 Stainless Steel Hex Domed Cap Nut
  • 321 Stainless Steel Hex Lock Nut
