316 Stainless Steel Torx Screws, SS Torx Bolts manufacturer in india at Factory price

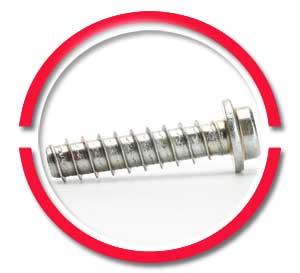

Stainless Steel Torx Screws

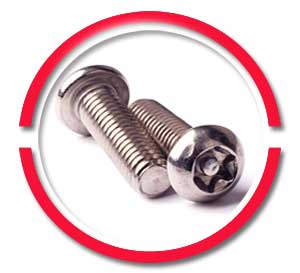

316 Stainless Steel Torx Screws

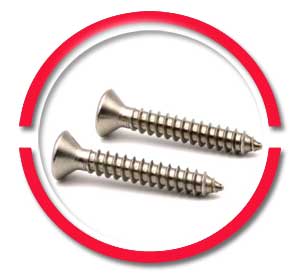

SS Torx Wood Screws
view torx screw size chart, supplies Stainless Steel Torx Wood Screws, Deck Screws and Metric Torx Screws
The Stainless Steel Torx Wood Screws are characterised by a distinct, 6 point star shaped pattern. This is why suppliers and manufacturers refer to the Stainless Steel Torx Screws as a star screw. Since the SS Torx Bolts is a star shaped one, using a regular screwdriver will damage both the screwdriver and the fastener.
Hence a star shaped screwdriver is used to both to tighten as well as untighten these Stainless Steel Torx Sheet Metal Screws. Typically the Stainless Steel Button Head Torx Screws are used in various equipment such as computer systems, hard disk drives, vehicles, bicycles, motorcycles, and consumer electronics. The unusual star shaped head makes the Stainless Steel Torx Head Wood Screws a highly secure form of fasteners as compared to a regular flathead or even cross head screws.
The Stainless Steel Self Tapping Screws Torx permits the transmission of a higher torque so that both the screws and bolts can be tightened. Security Stainless Steel Torx Machine Screws are often known as either Pin Torx or as 6 lobe screws or as tamper proof Torx. This is because of an additional pin present at the centre of the head of the Stainless Steel Metric Torx Screws.
This centre pin makes it impossible to use a conventional Torx screwdriver to unfasten these secure Stainless Steel Torx Deck Screws, making this kind of fasteners tamper-proof. As one of the leading Torx Screw Manufacturers China, we offer reasonably priced, secure fasteners.
Typical Dimensional & Torque Specifications of TORX Tools For use with Internal Socket Head Type TORX Screws
|
Size
|
Inch
P to P |
Metric
P to P |
Maximum Torque Range
|
|---|---|---|---|
|
T1
|
.031
|
.81mm
|
.02 to .03 Nm
|
|
T2
|
.036
|
.93mm
|
.07 to .09 Nm
|
|
T3
|
.046
|
1.10mm
|
.14 to .18 Nm
|
|
T4
|
.050
|
1.28mm
|
.22 to .28 Nm
|
|
T5
|
.055″
|
1.42 mm
|
.43 to .51 Nm
|
|
T6
|
.066″
|
1.70 mm
|
.75 to .9 Nm
|
|
T7
|
.078″
|
1.99 mm
|
1.4 to 1.7 Nm
|
|
T8
|
.090″
|
2.31 mm
|
2.2 to 2.6 Nm
|
|
T9
|
.098″
|
2.50 mm
|
2.8 to 3.4 Nm
|
|
T10
|
.107″
|
2.74 mm
|
3.7 to 4.5 Nm
|
|
T15
|
.128″
|
3.27 mm
|
6.4 to 7.7 Nm
|
|
T20
|
.151″
|
3.86 mm
|
10.5 to 12.7 Nm
|
|
T25
|
.173″
|
4.43 mm
|
15.9 to 19 Nm
|
|
T27
|
.195″
|
4.99 mm
|
22.5 to 26.9 Nm
|
|
T30
|
.216″
|
5.52 mm
|
31.1 to 37.4 Nm
|
|
T40
|
.260″
|
6.65 mm
|
54.1 to 65.1 Nm
|
|
T45
|
.306″
|
7.82 mm
|
86 to 103.2 Nm
|
|
T50
|
.346″
|
8.83 mm
|
132 to 158 Nm
|
|
T55
|
.440″
|
11.22 mm
|
218 to 256 Nm
|
|
T60
|
.519
|
13.25 mm
|
379 to 445 Nm
|
|
T70
|
.610
|
15.51 mm
|
630 t0 700 Nm
|
|
T80
|
.690
|
17.54 mm
|
943 to 1048 Nm
|
|
T90
|
.784
|
19.92 mm
|
1334 to 1483 Nm
|
|
T100
|
.871
|
22.13 mm
|
1843 to 2048 Nm
|
check Torx screw dimensions, Stainless Steel Torx Machine Screws, Self Tapping Screws Torx, Torx Head Wood Screws suppliers
| Grade | 18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Torx Screws |
|---|---|
| Stainless Steel Screw standard | ISO 14583 |
| Stainless Steel Torx screws standard | ISO 10642 |
| British standards | BS 57 |
| Stainless Steel Torx Screws Size |
Stainless Steel Torx Screws M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes |
| Length | 3 mm to 200 mm |
| Stainless Steel Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: |
DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards |
| DIN Standard | B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985 |
| UTS – Unified Thread Standard | UNC, UNF, UNEF, UNS, NPT, NPTF |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Tolerance | +/-0.01mm to +/-0.05mm |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Finishing: | Zinc (yellow, white, blue, black), black oxide Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Finish | Per ASTM A380/A380M |
| Production process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Origin and service-region: | European Origin of Stainless Steel Torx Screws are Western European. However projects with eastern origin are possible on request. |
| Surface Coating: |
All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE. |
| Surface treatment |
|
| Top Manufacturers | SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc. |
| Stainless Steel Torx Screws Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Why choose us? |
|
| MOQ | 5 pieces |
| Test Certificate: |
|
| Free Samples | Yes |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Other available material |
|
| Uses & application | Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry |
|
Hexagonal Head – Torx and Cladding Screws
For fastening Torx and walling profiles to metal, with and without seals, Available mechanically galvanised to AS 3566 Class 3 and Class 4. Sizes available in 12g and 14g |
|
