Stainless Steel Flange Nuts

High-Strength 12-Point/ Exhaust Flange Nuts, SS Hex flange nuts manufacturers in india

supplies a full range of Stainless Steel Serrated, lock and Metric Flange Nuts at Factory price in Shenzhen, China

Stainless Steel Flange Nuts can come under different standards such as the DIN 934, 982, 985, 936 and so on. There are UNC, UNF, UNEF, UNS, NPT and NPTF standards for the thread types. High Temperature Fasteners Inc. is a leading manufacturer and supplier of the different types such as the High-Strength 12-Point Flange Nuts. The 12 point nuts are made by overlapping two hexagon shapes on the nut head.

There are different types of nuts made from different material grades. The SS Hex Flange Nuts are some of the commonly used nuts due to the geometric strength and ease of installation with tools. The materials used for these nuts can vary as 18-8 steel, 4.6,8.8, A2, A4, A2-70 and so on. The difference in the material composition makes the difference in the mechanical properties as well. The Stainless Steel Serrated Flange Nuts have serrated outer surface rings so that they do not loosen easily under vibrations. The nuts could be made of cold forging, hot forging and machining techniques with sizes ranging from M24 to M100.

The SS Lock Flange Nuts are another type that have the specific form and structure to lock onto the bolt so that they don’t come off easily. There are different techniques used to hold the nuts onto the bolts. The SS Metric Flange Nuts are used in many flanging applications such as water lines, oil and gas lines and in other pipeline applications as well. Please feel free to contact us for more information on the different types of the flange nuts and their pricing.

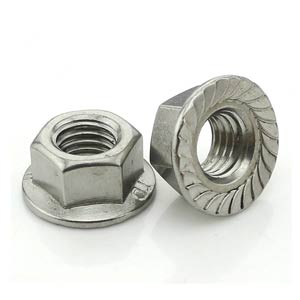

Stainless Steel Flange Nuts
Stainless Steel Flange Nuts

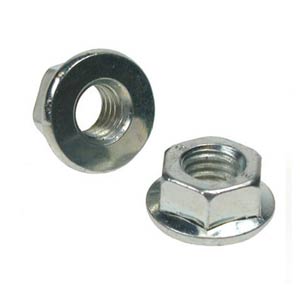

SS Serrated Flange Nuts
SS Serrated Flange Nuts

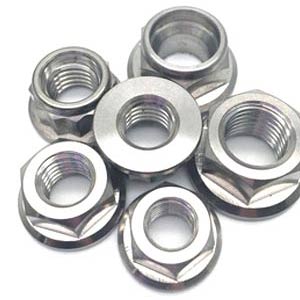

High-Strength 12-Point Flange Nuts
High-Strength 12-Point Flange Nuts



Table of Content



stainless steel Flange Nuts specifications
Grade 18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Flange Nuts
DIN standard DIN 934, DIN 982, DIN 985, DIN 936, DIN 929, DIN 1587, DIN 439, DIN 315
British standards BS 57
Stainless Steel Flange Nuts Size
  • Cold Froging : M2-M24
  • Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg
  • Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg

Stainless Steel Flange Nuts M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes
Length 3 mm to 200 mm
Stainless Steel Threads: Metric, Metric Fine, BSW, UNF, UNC, BA, BSF and BSCY (cycle) threads or as required
Standard:
  • ISO 4035
  • ISO 14585C ~DIN 7981C
  • DIN 7973C ~ISO 1483
  • DIN 7983C ~ISO 7051
  • ANSI B18.3.1M
  • ASME B18.6.3
  • GB/T5782, GB/T5783, GB5783

DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards
ANSI – American National Standards Institute
DIN Standard B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985
UTS – Unified Thread Standard UNC, UNF, UNEF, UNS, NPT, NPTF
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Tolerance +/-0.01mm to +/-0.05mm
Head drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Type Pan/ Round/ Oval/ countersunk/ Truss head
Head Pan head, flat head, oval head, Flange head, phillips head
Finishing: Zinc (yellow, white, blue, black), black oxide
Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Finish Per ASTM A380/A380M
Production process Wire DraFlange, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Origin and service-region: European
Origin of Stainless Steel Flange Nuts are Western European. However projects with eastern origin are possible on request.
Surface Coating:
  • Ptfe Coated Flange Nuts
  • Hot Dipped Galvanizing Flange Nuts
  • Phosphate Flange Nuts
  • Teflon Flange Nuts
  • Xylon Flange Nuts
  • Zinc Phosphate Flange Nuts
  • Manganese Phosphate
  • Zinc Electro Plating (Flangeavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium Flange Nuts

All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.
Surface treatment
  • Polish
  • Passivation
  • Anodizing
  • Sand blasting
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
  • Black oxide coating
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Top Manufacturers SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc.
Stainless Steel Flange Nuts Packing: IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Why choose us?
  • Best Price in China and compare to China
  • Professional technical team
  • High precision threads
  • Strong production line
  • High Temperature Fasteners Inc. will be your reliable partner
MOQ 5 pieces
Test Certificate:
  • Manufacturer Test Certificate as per EN 10204 / 3.1,
  • Tensile testing to ISO 898-1
  • Nut proof load testing to ISO 898-2
  • Suitability for preloading to EN 14399-2
  • Suitability test for calibrated preload to EN 14399-10
  • Charpy Impact testing in accordance with ISO 148-1
  • Hardness testing to ISO 6508-1
  • Tri-Roll Thread Comparators
  • Calibrated gauges and tools
Free Samples Yes
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Other available material
  • Stainless Steel Flange Nuts: SUS201, SUS304, SUS316, SUS410
  • Brass Flange Nuts: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
  • Bronze Flange Nuts: C51000, C52100, C54400 etc
  • Aluminum Flange Nuts: Al6061, Al6063 etc
  • Aluminum Alloy Flange Nuts: Al6061, Al6063 etc
  • Titanium and Titanium Alloy Flange Nuts: TAD, TA1-TA8, TB2, TC1-TC10
  • Alloy steel Flange Nuts: SCM435, C10B21, C10B33
Uses & application Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry



Stainless Steel Flange Nuts Price List
Thread/ Dia Size
18-8 Stainless Steel Flange Nuts Price
316 Stainless Steel Flange Nuts Price
1/4″-20
$5.70 / each
$9.74 / each
5/16″-18
$5.80 / each
$10.87 / each
3/8″-16
$7.15 / each
$11.99 / each
1/2″-13
$9.20 / each
$13.60 / each

Please note this is an approx Cost of Metric Flange Nuts in China. For final Stainless Steel Serrated Flange Nuts price list please mail us.

We are Manufacturer of wide range stainless steel flange lock and nyloc nuts in China

Stainless Steel Flange Nuts Dimensions
Standard Dimension
Description
Size
Threads
Finish
Material Grade
ISO 4032
Flange Nuts
M-16 to M-100
MM
Bright
SS 304, SS 316, SS 316L, 316S31
DIN 934
Flange Nuts
M-16 to M-100
MM
Bright
SS 304, SS 316, SS 316L, 316S31
ANSI B18.2.2
Flange Nuts
5/8″ to 4″
Unc
Bright
ASTM A-194 8 , 8M, 8T
BS 1083
Flange Nuts
5/8″ to 4″
BSW
Bright
ASTM A-194 8 , 8M, 8T
Fastener Type
Diameter
Grades
Grades
Grades
Grades
Hex nuts
M-30 to M-72
304 / 304 L
316 / 316 L
310 / 310 S
410 / 431
Hex lock nuts
M-30 to M-72
304 / 304 L
316 / 316 L
310 / 310 S
410 / 431
Hex nylock nuts
M-30 to M-64
304 / 304 L
316 / 316 L
310 / 310 S
410 / 431
Hex castle nuts
M-12 to M-72
304 / 304 L
316 / 316 L
310 / 310 S
410 / 431
Heavy hex nuts
M-12 to M-72
304 / 304 L
316 / 316 L
310 / 310 S
410 / 431
* Comparison chart for international steel grades for stainless steel Flange Nuts
Type
Grades
European Number
ASTM grade
UNS
British standard
DIN
SS Flange Nuts
304
1.4301
ASTM A 193 Gr B8
S 30400
BS 970
X 5CrNi1810
SS Flange Nuts
304 L
1.4306
ASTM A 320 Ge B8
S 30403
BS 970
X 2CrNi1911
SS Flange Nuts
316
1.4401
ASTM A 193 Gr B8M
S 31600
BS 970
X 5 CrNiMo 17 13 2
SS Flange Nuts
316 L
1.4404
ASTM A 320 Ge B8M
S 31603
BS 970
X 2 CrNiMo 17 13 2
SS Flange Nuts
310
1.4841
ASTM A 479
S 31000
BS 970
X 12 CrNi 25 21
SS Flange Nuts
310 S
1.4845

S 31008
BS 970
X 12 CrNi 25 21
SS Flange Nuts
410
1.4006

S 41000
BS 970
X 10Cr13
SS Flange Nuts
431
1.4057

S 43100
BS 970
X 20CrNi172
SS Flange Nuts
316S31
1.4401
ASTM A 193 Gr B8M
S 31600
BS 970
X 5 CrNiMo 17 12 2
Alloy Steel Flange Nuts
Standard Dimension
Size
Threads
Material Grade
ISO 4032
M-16 to M-100
MM
10, 12
DIN 934
M-16 to M-100
MM
10, 12
ANSI B18.2.2
5/8″ to 4″
Unc
ASTM A-194 4 , L4, 7 , 7M
BS 1083
5/8″ to 4″
BSW
ASTM A-194 4 , L4, 7 , 7M
Carbon Steel Flange Nuts
Standard Dimension
Size
Threads
Finish
Material Grade
ISO 4032
M-16 to M-100
MM
Plain / Zinc plated / HDG
4.6, 5.6, 6.6, 8.8
DIN 934
M-16 to M-100
MM
Plain / Zinc plated / HDG
4.6, 5.6, 6.6, 8.8
ANSI B18.2.2
5/8″ to 4″
Unc
Plain / Zinc plated / HDG
S, R, T
BS 1083
5/8″ to 4″
BSW
Plain / Zinc plated / HDG
A, B, C

Flange Nuts Dimensions | Flange Nuts Grades | Flange Nuts Manufacturers | High Tensile Flange Nuts| Flange Nuts Suppliers

Standard / Material grade
C
MN
P
S
A 307 Grade B
0.29
1.2
0.04
0.15
4.6
0.55 max
–
0.05
0.06
5.6
0.13-0.55
–
0.05
0.06
6.8
0.15-0.55
–
0.05
0.06
8.8
0.25-0.55
–
0.05
0.06
Duplex Steel Flange Nuts
Standard Dimension
Size
Threads
Finish
Material Grade
ISO 4032
M-16 to M-100
MM
Bright
S32205 , S31803
DIN 934
M-16 to M-100
MM
Bright
S32205 , S31803
ANSI B18.2.2
5/8″ to 4″
Unc
Bright
S32205 , S31803
BS 1083
5/8″ to 4″
BSW
Bright
S32205 , S31803
Nuts as per British Standard Specification
BS 1083 Thin Hex Jam Nut
BS 1083 Hex Nut
BS 1083 Full Hex Nut
BS 1083 Hex Locking Nut with Nylon Insert (Type T)
BS 1083 Hex Locking Nut with Nylon Insert (Type P)


Exhaust Manifold Flange Nuts suppliers in Shenzhen, China, Buy from M8 Stainless Steel hex flange nut manufacturers in China
