Marine grade or also referred to as a4 threaded rod is synonymous with alloy 316. Austenitic grade 316 Stainless Steel Threaded Rod is particularly well suited for use in those applications where grade 304 will fail.
View 316 stainless steel threaded rod properties, most reliable A4-70 Threaded Rod, SS 316 Threaded Rod, A4-80 Threaded Rod manufacturer

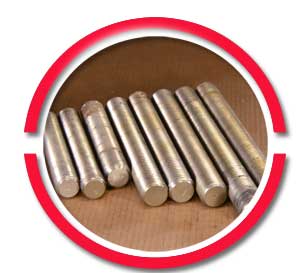

316 Stainless Steel Threaded Rod

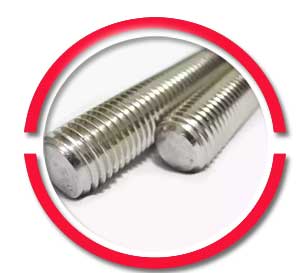

A4-70 Threaded Rod

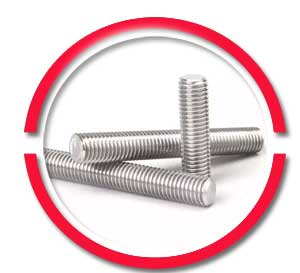

SS 316 Threaded Rod
Check 316 stainless steel threaded rod prices, 316 stainless steel threaded rod specifications and tensile strength
This is because an A4 Stainless Steel Threaded Bar is well equipped to deal with stressors such as elevated temperature, resistance to oxidation etc as compared to grade 304. The addition of molybdenum in 316 stainless steel metric threaded rod is what improves the resistance of the alloy to general corrosion. Molybdenum added to the alloy of 3/4 316 stainless steel threaded rod improves its resistance to chloride pitting. Whereas both chromium and Molybdenum in combination with nickel gives 316 Stainless Steel Threaded Studs its much required higher creep strength and stress to rupture strength as well as increased tensile strength at elevated temperatures.
A highlight about the 316 stainless steel threaded rod tensile strength is that it is useful in conditions where conventionally used alloy steel and carbon steel grades would likely be susceptible to cracking. In terms of its tensile strength, the A4-70 Threaded Rod is a medium tensile marked fastener as compared to grade A4-80 Threaded Rod, which are referred to as high tensile fasteners. The 316 stainless steel threaded rod specifications could be customised to meet the requirements of the buyer or they could be produced as per ASTM specification. Click on the link below to view the 316 stainless steel threaded rod prices.
A4 Stainless Threaded Rod Metric
|
Size
|
Pack Size
|
Price
|
|---|---|---|
|
M3 x 1m
|
1
|
€0.88
|
|
M3 x 1m Pack 5
|
5
|
€3.72
|
|
M4 x 1m
|
1
|
€0.98
|
|
M4 x 1m Pack 5
|
5
|
€6.10
|
|
M5 x 1m
|
1
|
€0.98
|
|
M5 x 1m Pack 5
|
5
|
€6.10
|
|
M6 x 1m
|
1
|
€1.31
|
|
M6 x 1m Pack 5
|
5
|
€5.72
|
|
M8 x 1m
|
1
|
€2.21
|
|
M8 x 1m Pack 5
|
5
|
€9.92
|
|
M10 x 1m
|
1
|
€3.45
|
|
M10 x 1m Pack 5
|
5
|
€15.64
|
|
M12 x 1m
|
1
|
€5.03
|
|
M12 x 1m Pack 5
|
5
|
€22.62
|
|
M14 x 1m
|
1
|
€7.55
|
|
M14 x 1m Pack 5
|
5
|
€34.34
|
|
M16 x 1m
|
1
|
€9.21
|
|
M16 x 1m Pack 5
|
5
|
€39.18
|
|
M18 x 1m
|
1
|
€11.47
|
|
M20 x 1m
|
1
|
€14.45
|
|
M20 x 1m Pack 5
|
5
|
€58.16
|
|
M22 x 1m
|
1
|
€17.79
|
|
M24 x 1m
|
1
|
€20.78
|
|
M30 x 1m
|
1
|
€26.39
|
|
M33 x 1m
|
1
|
€35.02
|
Please note this is an approx Cost of 316 Stainless Threaded Rod Price List in China. For final A4 Stainless Steel Threaded Stud price list please mail us.
One of China’s largest supplier of 3/4 316 stainless steel threaded rod, 316 stainless steel threaded bar and metric threaded rod
|
Strength Class
|
Min. UTS N/mm²
|
Min. Yield N/mm²
|
Elongation at Failure
|
|---|---|---|---|
|
A4 Stainless Steel Threaded Rod Class 50
|
500
|
210
|
0.6D
|
|
A4 Stainless Steel Threaded Rod Class 70
|
700
|
450
|
0.4D
|
|
A4 Stainless Steel Threaded Rod Class 80
|
800
|
600
|
0.3D
|
| Size Range | .250″ up to and including 15.00″ Diameter | ||
|---|---|---|---|
| Stock Lengths | 3 foot 6 foot 12 foot |
||
| Special Order | Custom lengths up to 50 Ft. Full Thread, Double End and Single End Parts | ||
| Materials |
|
||
| Thread Profiles |
|
||
| Class Fit |
|
||
| Thread Direction | Right Hand Left Hand |
||
| Thread Start | Single Multiple |
