astm a276 type 303 stainless steel round bar and rod

ASTM A479 grade 303 Rod exporter in China

Ready stock of ASME SA276 UNS S30300 Flat Bar in 3mm Thickness x 25mm Width

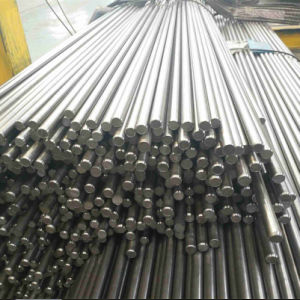

Astm A276 Type 303 Stainless Steel Round Bar

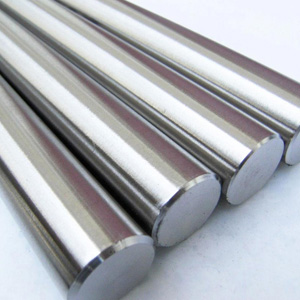

ASME SA276 UNS S30300 Rod

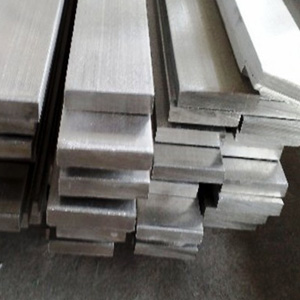

ASTM A479 grade 303 Flat bar

Check live price of DIN 1.4305 Hot Rolled & cold rolled bar, wide stock of SS 303 Hex Bar & Square Bar Ex Shenzhen

Unlike its fellow austenitic grade 304, stainless steel 303 contains additions of sulfur or selenium in its alloy. While the inclusion of sulfur is referred to as stainless steel 303 round bars, the addition of element selenium is referred to as 303se, where the term se indicates that the metal has been alloyed with selenium. The machinability properties of WNR 1.4305 square bar have been optimized by either of these two elements. Hence, if the application calls for superior machinability properties, this alloy is the appropriate choice. Along with an improvement in its machinability,303 Steel Cold Finished Bars have superior galling characteristics as well.

However, in comparison to grade 304, the corrosion resistance of this alloy grade tends to be lower. Though the addition of sulfur, which improves machinability, it also results in certain drawbacks seen in the ASTM A479 UNS S30300 hex bar. Firstly, the alloy’s resistance to corrosion becomes lower. Next, its toughness properties are slightly impaired. Furthermore, those regions in the microstructure of astm a276 type 303 flat bar which contain sulfur act as initiators for corrosion by means of pitting. But for both intermittent and continuous use, the alloy exhibits good resistance to oxidation, up to temperatures 927°C. Yet, manufacturers do not recommend using the JIS SUS 303 black bar at temperatures exceeding 760°C, solely because of higher carbon content, promoting carbide precipitation.

A phenomenon which in turn results in irregular scaling in the 303 stainless steel rod. Generally, lower carbon-containing alloys are resilient to becoming susceptible to sensitisation, unlike the 303 stainless steel welding rod. While welding this material is not recommended, it is a task that could be undertaken by welding the AISI 303 threaded bar with the aid of electrodes produced in stainless steel grade 310. Annealing performed on this alloy has its benefits including dissolution of carbide precipitates and achievement of a high machining rate, with the hardness property of the ss 303 bright bar valued between a range of 200 to 240 Brinell.

Material Specification Chart Of Stainless Steel 303 Round Bar

Specification : ASTM A276, A479 / ASME SA276, SA479
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Round Bars : Outside Diameter in the range of 4mm to 500mm
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Form : Round, Square, Hex (A/F), Rectangle Etc.
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Length : 1 to 6 Meters, Custom Cut Lengths
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Astm A276 Type 303 SS Round Bar Markings

“WP” in grade symbol
Material Designation
Rating Designation
Schedule number or nominal wall thickness
Grade
Manufacturer’s Name or Symbol
Heat Code

Size Chart Of ASTM A479 Grade 303 Rod

TYPE	MIN SIZE	MAX SIZE
Round Bar	1/8” dia	8-1/2”
Square Bar	3/16”	3/4”
Hex Bar	3/8”	1-3/4”
Flat Bar	upon request

Why to pay extra when we provide AISI 303 Forged and black Bar in exact sizes, Get free quote Now!

ASME SA276 UNS S30300 Flat Bar Documentation

Mechanical test report
Guarantee letter of the company
Chemical test report
Packaging list
Visual inspection statement
Commercial invoice

Mechanical Behaviour Of SUS 303 Round Bar

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1400 °C (2550 °F)	Psi – 85,000	Psi – 45,000	50%

Chemical Formula Of DIN 1.4305 Hex bar

CHEMICAL COMPOSITION
ASTM	A582
UNS	S30300
Type	303
Carbon (%)	0.15
Manganese (%)	2
Phosphorous (%)	0.2
Sulfur (%)	0.15 min
Silicon, Max (%)	1
Chromium (%)	17.0-19.0
Nickel (%)	8.0-10.0
Molybden (%)	—
Selenium (%)	—
Other Elements (%)	—

Equivalent Grades of AISI 303 Bar

STANDARD	WERKSTOFF NR.	UNS	JIS
SS 303	1.4305	S30300	SUS 303

Manufacturer & supplier of SS 303 Cold drawn bar, SUS 303 Bright Bar and pump shaft in China

Material testing of 303 Stainless Steel Round Bar

Micro and macro test
Chemical test
Mechanical test
Positive material identification test
Third party inspection
Visual inspection
Pitting resistance test

Ready Stock of 303 Stainless Steel Rod

Stainless Steel 1.4305 Round Bars ASTM A276 SS 303 Round Bar UNS S30300 Round Bar AISI 303 Round Bar Stainless Steel 303 Round Bar SS 303 Round Bar SUS 303 Round Bars	Stainless Steel 1.4305 Square Bar ASTM A276 SS 303 Square Bar UNS S30300 Square Bar Stainless Steel 303 Square Bar SS 303 Square Bar SUS 303 Square Bars AISI 303 Square Bars	ASTM A276 SS 303 Hollow Bar SUS 303 Hollow Bars UNS S30300 Hollow Bars Stainless Steel 1.4305 Hollow Bar AISI 303 Hollow Bar Stainless Steel 303 Hollow Bar SS 303 Hollow Bar
UNS S30300 Hex Bar ASTM A276 SS 303 Hex Bar Stainless Steel 303 Hex Bar SS 1.4305 Hex Bars SS 303 Hexagonal Bar SUS 303 Hexagonal Bars AISI 303 Hex Bars	SUS 303 Bright Bars ASTM A276 SS 303 Bright Bar UNS S30300 Bright Bars Stainless Steel 303 Bright Bar SS 303 Bright Bar AISI 303 Bright Bar SS 1.4305 Bright Bar	SUS 303 Forged Bars ASTM A276 SS 303 Forged Bar UNS S30300 Forged Bar Stainless Steel 303 Forged Bar SS 1.4305 Forged Bars SS 303 Forged Bar AISI 303 Forged Bar

Test certifications of SS 303 Round bar

These certificated are given in accordance with the EN 10204/ 3.1.
100% radiography test
Third party inspection statement
Raw material certificate
