ASTM A276 UNS S41600 Hex Bar and Flat bar manufacturer in China
We help you to save your cost by providing exact size of DIN 1.4005 Square Bar

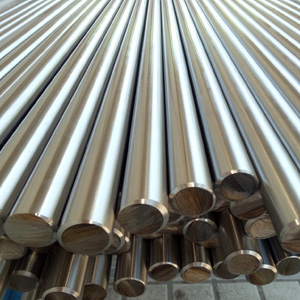

416 Stainless Steel Round Bar
ASTM A479 Type 416 Rod

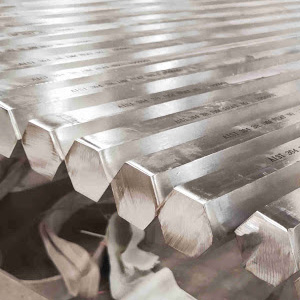

ASTM A276 UNS S41600 Hex Bar
Check weight, size chart and Price list of ASME SA 276 AISI 416 Forged Bar Ex Shenzhen
Grade 416 belongs to the martensitic class of Stainless Steel alloys. This particular grade is a free machining alloy. There are several benefits of using a free machining alloy like 416 stainless steel round bar, despite the cost of machining being valued about 15% to 20% more than conventional practices. For instance, not only does the machining speed increase, but the manufacturer is also able to expect a larger cut of the 416 stainless steel rods.
Moreover, small chips aid in easy machining while also extending the life of these steels. Since ASTM A479 UNS S41600 hex bar belongs to a category of free machining alloys, this particular stainless steel grade could be hardened. The alloy can be effectively hardened by subjecting the astm a276 type 416 flat bar to a heat treatment, which in turn, is an operation that optimizes the elevated strength and hardness properties of the alloy. Due to its reasonable economics and ready machinability, grade JIS SUS 416 black bar is easily used in its highly tempered disposition.
In compared to several conventional austenitic stainless steel grades, this martensitic DIN 1.4005 square bar demonstrates better machining characteristics. This being said, however, its high machining properties would mean that the AISI 416 threaded bar sacrifices an important property like corrosion resistance. Though not as resilient to corrosion as compared to authentic alloys, these grades have moderate resistance to corrosion. High sulfur, free machining stainless steel grades such as ss 416 bright bar tend to be rather unsuitable for applications that involve either marine or any chloride exposure circumstances.
- Specification : ASTM A276, A479 / ASME SA276, SA479
- Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
- Round Bars : Outside Diameter in the range of 4mm to 500mm
- Bright Bars : Outside Diameter in the range of 4mm to 100mm
- Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
- Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
- Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
- Length : 1 to 6 Meters, Custom Cut Lengths
- Form : Round, Square, Hex (A/F), Rectangle Etc.
Buy your sizes from our ASTM A479 SS 416 Bright Bars, pump shaft, cold / hot rolled bar
- Heat Code
- Rating Designation
- Material Designation
- “WP” in grade symbol
- Manufacturer’s Name or Symbol
- Schedule number or nominal wall thickness
- Grade
|
|
|
|
|
|
JIS 416 Rectangular Bar in cut to sizes, Supplier of SUS 416 Round Bar conforms to NACE MR0175/ISO 15156
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 416 | 0.15 max | 1.25 max | 1.0 max | 0.06 max | 0.15 min | 14.00 – 12.00 | 0.6 | – | – |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN | BS |
| SS 416 | 1.4005 | S41600 | SUS 416 | X12CrS13 | 416S21 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Tests |
Other tests
|
Test report details
|
|---|---|---|
|
|
|
