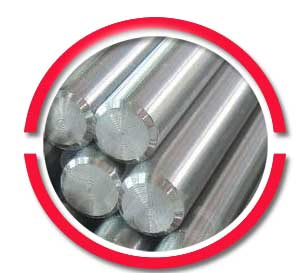

446 Stainless Steel Round Bar

ASME SA 276/ ASTM A276 UNS S44600 Rod manufacturer and supplier



Check updated price list of Din 1.4762 Hex and Flat bar and select ASTM A479 AISI 446 Square Bar from Our stock in China



Grade 446 pertains to the ferritic class of stainless steels. Being a ferritic grade, the ASTM A479 UNS S44600 hex bar is not heat-treatable stainless steel. The benefits of using this alloy are that the metal not only exhibits good resistance to high temperature oxidation, but the 446 stainless steel round bar also demonstrates good resistance to corrosion. Compared to austenitic steels, the corrosion resistance properties of ferritic grades like JIS SUS 446 black bar are much lower. However, this alloy makes up for its lower corrosion resistance properties because the 446 stainless steel welding rod has superior toughness.

In terms of welding, the ss 446 bright bar is an alloy that is readily welded with the use of the most conventional techniques. Yet, welding the astm a276 type 446 flat bar using oxyacetylene welding is the exception, as most manufacturers do not recommend using this technique. A non-hardenable alloy, the 446 stainless steel rods has excellent resistance to corrosion at elevated temperature settings, without any loss to its superior mechanical properties. A drawback noticed by suppliers in this grade is that the DIN 1.4762 square bar exhibits poor ductility. The reason for this is because of the higher content of chromium.

Due to the excellent oxidation resistance offered by the AISI 446 threaded bar at elevated temperatures this alloy is fairly regularly used for applications involving furnace parts and boiler baffles.







---



---

*Approx price, please contact for final price.



---



Pay only for the sizes you buy of SS 446 Bright Bar & Hot / cold drawn bar



---

• Customer service provided at High Temperature Fasteners Inc. is of the highest standard.
• Material used in round bar production is of high quality.
• Equipment is updated and regularly maintained.
• You will get exactly what you need and when you need it.
• Cost effective and high quality Stainless Steel 446 Round Bar is supplied.



---



---



---

Diameter – Smooth Turned

(These are H10 tolerances, which are ‘all minus’ tolerances )

Diameter (mm)	Tolerance (mm)
18 to 30	+0 / -0.084
31 to 50	+0 / -0.100
51 to 79	+0 / -0.120



Diameter – Rough Turned

(These are ‘all plus’ tolerances)

Diameter (mm)	Tolerance (mm)
75 to 150	-0 / +1.5
151 to 225	-0 / +2.0
226 to 410	-0 / +3.0



Diameter – Bright Drawn

These are H9 Tolerances
H9 Tolerances are ‘all minus’ tolerances:

+0mm / – Figure in table

Diameter (mm)	Tolerance (mm)
6 to 10	+0 / -0.036
11 to 18	+0 / -0.043
19 to 30	+0 / -0.052

Tolerance In Mm For Given Tolerance Number

Diameter (mm)	6	7	8	9	10	11	12	13
>1 to 3 inc.	0.007	0.009	0.014	0.025	0.040	0.060	0.090	0.140
>3 to 6 inc.	0.008	0.012	0.018	0.030	0.048	0.075	0.120	0.180
>6 to 10 inc.	0.009	0.015	0.022	0.036	0.058	0.090	0.150	0.220
>10 to 18 inc.	0.011	0.018	0.027	0.043	0.070	0.110	0.180	0.270
>18 to 30 inc.	0.013	0.021	0.033	0.052	0.084	0.130	0.210	0.330
>30 to 50 inc.	0.016	0.025	0.039	0.062	0.100	0.160	0.250	0.390
>50 to 80 inc.	0.019	–	0.046	0.074	0.120	0.190	0.300	0.460
>80 to 120 inc.	0.022	–	–	0.087	0.140	0.220	0.350	0.540
>120 to 180 inc.	0.025	–	–	0.100	0.160	0.250	0.400	0.630
>180 to 250 inc.	–	–	–	0.115	0.185	0.290	0.460	0.720
>250 to 315 inc.	–	–	–	–	–	0.320	0.520	0.810
>315 to 400 inc.	–	–	–	–	–	0.360	0.570	0.890
>400 to 500 inc.	–	–	–	–	–	0.400	0.630	0.970
> 500	–	–	–	–	–	0.440	0.700	1.100



Tolerances on cross sections

Nominal dimension	Tolerance class to ISO 286-2
	h6	h7	h8	h9	h10	h11	h12
over 1 up to 3	0.006	0.010	0.014	0.025	0.040	0.060	0.100
over 3 up to 6	0.008	0.012	0.018	0.030	0.048	0.075	0.120
over 6 up to 10	0.009	0.015	0.022	0.036	0.058	0.090	0.150
over 10 up to 18	0.011	0.018	0.027	0.043	0.070	0.110	0.180
over 18 up to 30	0.013	0.021	0.033	0.052	0.084	0.130	0.210
over 30 up to 50	0.016	0.025	0.039	0.062	0.100	0.160	0.250
over 50 up to 80	0.019	0.030	0.046	0.074	0.120	0.190	0.300
over 80 up to 120	0.022	0.035	0.054	0.087	0.140	0.220	0.350
over 120 up to 180	0.025	0.040	0.063	0.100	0.160	0.250	0.400
over 180 up to 200	0.029	0.046	0.072	0.115	0.185	0.290	0.460



Tolerances on length

Type of length	Length	Limit deviation	To be stated on order
Manufacturing length	3000 to 9000	+/- 500	Length
Stock length	3000 or 6000	0, +200	eg 6000
Cut to length	Up to 9000	To specifications with +/- 5 minimum	Length and tolerance



Tolerances on straightness

Product form	Nominal dimension	Deviation
Rounds	–	1.0
Squares and hexagons	up to 75	1.0
	over 75	1.5
Flats	width below 120	1.5 on width / 2.0 on thickness
	width at or over 120 and w/t below 10:1	2.0 on width / 2.5 on thickness
	width at and over 120 and w/t at or over 10:1	2.5 on width / 3.0 on thickness



---

---





---

Cut to size on request (tolerance +2/-0 mm). 446 Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm.

---

---



We stock and supply SUS 446 round bar as per BS EN 10088-3:2014 Standard and many more international standards



---



Get Cut to size JIS 446 Forged Bar at lowest price in Shenzhen



---



---
