15-5ph stainless steel round bar

15-5 ph rod, AMS 5659 15-5PH Bright/ Flat Bar Manufacturer in india

DIN 1.4545 Hex Bars, UNS S15500 Square and Cold Finished Bars Suppliers

15-5ph Stainless Steel Round Bar is a variation of the 17-4 chromium nickel copper precipitation hardening steel type. This type of stainless steel alloy has high strength and good corrosion resistance. High Temperature Fasteners Inc.  is a leading manufacturer and supplier of the different types of 15-5 Ph Rod products in different dimensions. These are used in shafts, making fasteners, fittings and gears, aircraft components and in high pressure corrosive parts that are fabricated. Valves made up of the AMS 5659 15-5PH Flat Bar are common in engine parts and in other applications as well.

The reduced delta ferrite makes sure that the toughness is increased. There are different conditions to the different bars such as H900, H1025, H1075 and others. Each of these has different yield and tensile strengths. The yield strengths range from 75ksi to 170ksi and the minimum tensile strength of the DIN 1.4545 Hex Bars ranges from 115ksi to 190ksi depending on the different conditions.

The applications include boat shafts, flat bars, pump shafts, pump parts, gears valves and other tough components. The chemical composition includes carbon, chromium, columbium, tantalum, copper, manganese, nickel, phosphorus, silicon, and sulfur. Please feel free to contact us for more information on the different types of UNS S15500 Square Bars, round bars and the prices.

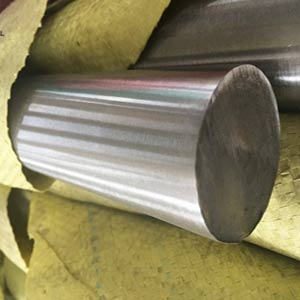

15-5ph Stainless Steel Round Bar
15-5ph Stainless Steel Round Bar

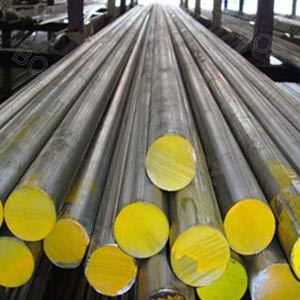

UNS S15500 Rod
UNS S15500 Rod

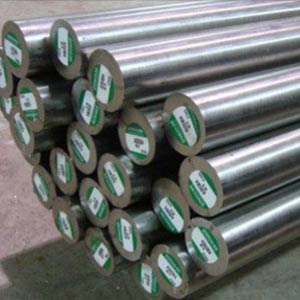

DIN 1.4545 Cold Finished Bars
DIN 1.4545 Cold Finished Bars



Specification of Stainless Steel 15-5PH Round Bars
  • Dimension : EN, DIN, JIS, ASTM, BS, ASME, AISI
  • Grade : 15-5PH (UNS No. S15500) Round Bars 1.4545
  • Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
  • Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
  • Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
  • Application : Chemical process, Food processing, Petrochemical, Pollution control, Pulp and Paper, Refining
  • Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished.
  • Our 15-5PH Round Bars conforms to NACE MR0175/ISO 15156

Chemical Composition of 15-5ph stainless steel round bar
Grade C P Si Ni Al Fe Mn S Cr Cb+Ta
SS 15-5PH 0.07 0.04 1.0 3.5 – 5.5 – Bal 1.0 0.03 14.0 – 15.5 0.15 – 0.45
Equivalent Grades of Stainless Steel 15-5PH Bars
STANDARD WERKSTOFF NR. UNS
SS 15-5PH 1.4545 S15500
Mechanical properties of 15-5ph stainless steel round bar

The mechanical properties of Grade 15-5 PH stainless steel are displayed in the following table.

Material Condition
 Ultimate Tensile Strength (ksi) 0.2 % Yield Strength (ksi) Elongation % in 2D % Reduction of Area Rockwell C Hardness
Alloy 15-5 PH
Bar AMS 5659		 Cond A – – – – 363 HB max
Alloy 15-5 PH
Bar AMS 5659		 H900 190 170 10 35 388-444
Alloy 15-5 PH
Bar AMS 5659		 H925 170 155 10 38 375-429
Alloy 15-5 PH
Bar AMS 5659		 H1025 155 145 12 45 331-401
Alloy 15-5 PH
Bar AMS 5659		 H1075 145 125 13 45 311-375
Alloy 15-5 PH
Bar AMS 5659		 H1100 140 115 14 45 302-363
Alloy 15-5 PH
Bar AMS 5659		 H1150 135 105 16 50 277-352
Material Condition
 Ultimate Tensile Strength (ksi) 0.2 % Yield Strength (ksi) Elongation % in 2D % Reduction of Area Rockwell C Hardness
Alloy 15-5 PH
Sheet/Plate AMS 5862		 Cond A – – – – 38 max
Alloy 15-5 PH
Sheet/Plate AMS 5862		 H900 190 170 5 – 40-47
Alloy 15-5 PH
Sheet/Plate AMS 5862		 H925 170 155 5 – 38-45
Alloy 15-5 PH
Sheet/Plate AMS 5862		 H1025 155 145 5 – 35-42
Alloy 15-5 PH
Sheet/Plate AMS 5862		 H1075 145 125 5 – 33-39
Alloy 15-5 PH
Sheet/Plate AMS 5862		 H1100 140 115 5 – 32-38
Alloy 15-5 PH
Sheet/Plate AMS 5862		 H1150 135 105 8 – 28-37
Condition
Ultimate Tensile
Strength (PSI)
0.2% Yield
Strength (PSI)
Elongation
(% in 2in.)
Reduction Of
Area (%)
Hardness
Brinell
Hardness
Rockwell
H900
190,000
170,000
6
15
388
C40
H1025
155,000
125,000
8
27
331
C35
H1075
145,000
125,000
9
28
311
C32
H1150
135,000
105,000
11
30
277
C28
H1150-M
115,000
75,000
14
35
255

15-5ph stainless steel round bar Backed by Industry Standards
  • UNS S15500
  • AMS 5659
  • ASTM A564
15-5ph stainless steel round bar Applications

The following are some of the major applications of Grade 15-5 PH stainless steel:

  • Aircraft components
  • Gears
  • Hallow shafts
  • Nuclear reactor components
  • Marine gas turbine compressor sections
  • Engine parts
  • Paper mill equipment
  • Fittings and fasteners
