420 stainless steel round bar and rod

ASTM A276 type 420 Flat & Hex Bar manufacturer in China

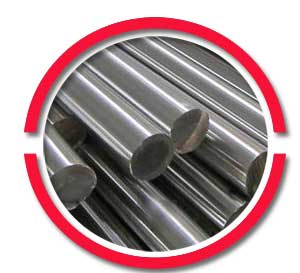

SS 420 Rod

SS 420 Rod

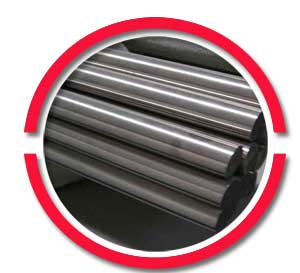

Stainless Steel 420 Round Bar

Stainless Steel 420 Round Bar

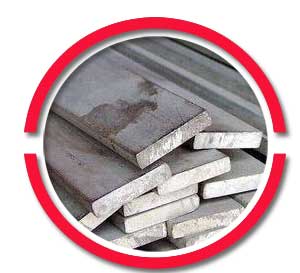

DIN 1.4021 Flat Bar

DIN 1.4021 Flat Bar

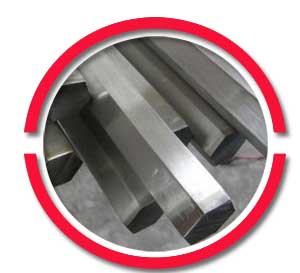

UNS S42000 Hex Bar

UNS S42000 Hex Bar

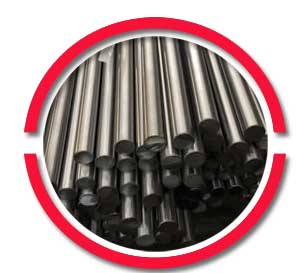

SUS 420 Bright Bar

SUS 420 Bright Bar

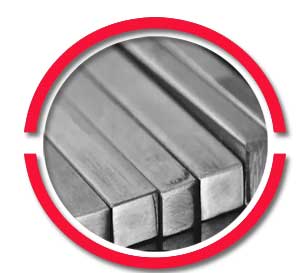

ASTM A276 SS 420 Square Bar

ASTM A276 SS 420 Square Bar



We help you to save your cost by providing exact size of UNS S42000 AISI 420 Square Bar



Table of Content



Stainless Steel 420 Round Bar is made up of a martensitic stainless steel with high yield strength of up to 1365MPa at 316 degrees Celsius and up to 1620MPa minimum tensile strength at 427 degrees Celsius. The standard values are 495MPa for yield and 700MPa for tensile strength. High Temperature Fasteners Inc. is a leading manufacturer of the SS 420 Rod and bars in different shapes, sizes and dimensions. The material has carbon, manganese, silicon, phosphorus, sulfur, 11.5% chromium and nickel in the composition. There are different specifications, types and finishes such as the ASTM A276 type 420 Bright Round bars.

The finishes can be bright, polished or black. The size ranges from 3mm to 350mm. The form of the round, square, hex, rectangular, wire, ingot, forging, wire mesh, billet and more. The UNS S42000 AISI 420 Black Bar can be used without polishing in general corrosive applications because the material is corrosion resistant. The martensitic steel grades have very high wear and tear resistance. The ASTM A479 Stainless Steel 420 Hex Bar has 1 to 6m length and custom cut to length sizes. The different bars have different sizes. The hex bars have 18mm t o57mm thickness alike the Stainless Steel 420 Square Bar.

The round bars, bright bars and the 420 Stainless Steel Flat Bar types have sizes ranging from 4mm to 100mm. There are hot rolled and cold drawn types of bars. The bars are used in construction, ship building, building of bridges, engineering applications and more. The SS 420 Cold Drawn Round Bar is the most used type of bar in this grade. Please contact us for more information on the different types of bars such as the ASTM A276 SS 420 Threaded Bar and others.





SS 420 Rod prices list in india

Request the latest 420 Stainless Steel Bar Price List.

  • ASME SA276 Stainless Steel 420 Round Rod : US $1500-7000 / Metric Ton (FOB Price)
  • SS 420 Round Bar / Rod : US $1500-3000 / Ton (FOB Price)
  • ASTM A276 SS 420 Round Bars : US $1-5 / Kilogram (FOB Price)



Comparing Standards Specification Of Stainless Steel 420 Round Bar
COLD DRAWN & CENTERLESS GROUND BARS
SIZE RANGE (DIA)  4mm to 55.56mm dia
TOLERANCE  h7, h8, h9, h10, h11, k10, k12, k13
GRADES  1.4305, 1.4307, 1.4404, 1.4006, 1.4005, 1.4021, 1.4028, 1.4104, 1.4057.
CONDITION  Annealed/ Quenched Tempered/ Solution Annealed



PEELED & CENTERLESS GROUND BARS / PEELED & POLISHED BARS
SIZE RANGE (DIA)  14mm to 170mm dia
TOLERANCE  h7, h8, h9, h10, h11, k10, k12, k13
GRADES  1.4305, 1.4307, 1.4404, 1.4006, 1.4005, 1.4021, 1.4028, 1.4104, 1.4057.
CONDITION  Annealed/ Quenched Tempered/ Solution Annealed



FORGED, ROUGH TURNED (PROOF MACHINED ) ROUND BARS
SIZE RANGE (DIA)  175mm to 500mm dia
TOLERANCE  +/- 05mm dia
GRADES  1.4307, 1.4404, 1.4006, 1.4005, 1.4021, 1.4104, 1.4057.
CONDITION  Annealed/ Quenched Tempered/ Solution Annealed



Specification ASTM A276/ A479, ASME SA276/SA479
Grade Stainless Steel 420 (UNS S42000)
Flat bar size 1/2” to 10” in thickness range of 2mm to 150mm
Square bar size 18mm – 47mm (11/16″ to 1-3/4″)
Round bar size Outside Diameter in the range of 4mm to 500mm
Hex Bar size 18mm – 57mm (11/16″ to 2-3/4″)
Bright Bar Outside Diameter in the range of 4mm to 100mm
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Billet Size 1/2″ to 495mm Diameter
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Rectangular bar Size 33 x 30mm to 295 x 1066mm
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Surface Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished
Condition Hardened & tempered, annealed
Technique 420 Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled
Processing Bar cutting to 650mm
Section 3.0 to 12.0mm thickness
Form Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar,Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc.
Our 420 Stainless Steel Round bar conforms to NACE MR0175/ISO 15156



Check weight, size chart and Price list of ASME SA 479 grade 420 Forged Bar Ex Shenzhen



ASTM A276 type 420 Rod Surface finish
CD
Cold drawn
P
Polished
BD
Bright drawn
SRE
Slit rolled edge
CG
Centreless ground
HF
Hot finished
CF
Cold finished
HRAP
Hot rolled annealed and pickled
P&T
Peeled and turned
RT
Rough turned/peeled
ST
Smooth turned
PR
Peeled and reeled



SS 420 Hex Bar Condition
H&T
Hardened and tempered.
ANN
Annealed
PH
Precipitation hardened.
Types Of 420 Stainless Steel Round Bar

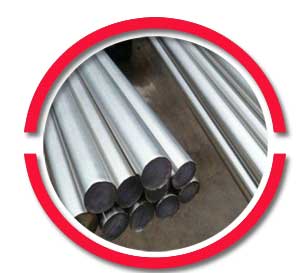

SS 420 Cold Drawn Stainless Steel Round bar
SS 420 Cold Drawn Stainless Steel Round bar

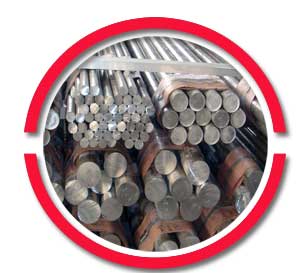

ASTM 420 1.4021 stainless steel round bar
ASTM 420 1.4021 stainless steel round bar

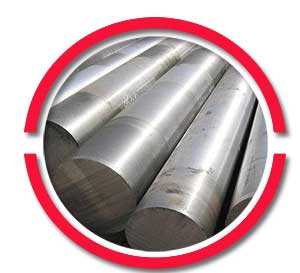

Large Diameter 420 Stainless 10mm Steel Round Bar
Large Diameter 420 Stainless 10mm Steel Round Bar

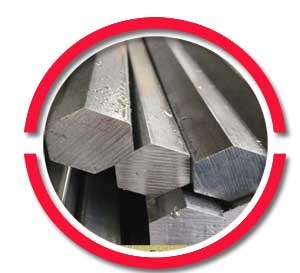

SS 420 Stainless Steel Square Hexagon Bars
SS 420 Stainless Steel Square Hexagon Bars

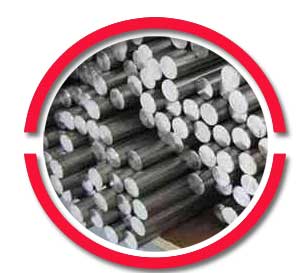

AISI 420 stainless steel 3 to 400mm cold drawn bright bar
AISI 420 stainless steel 3 to 400mm cold drawn bright bar

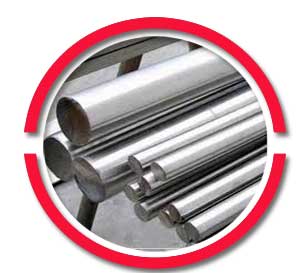

AISI 420 2Cr13 5mm-500mm Diameter Drawing Polish Finish Rod
AISI 420 2Cr13 5mm-500mm Diameter Drawing Polish Finish Rod

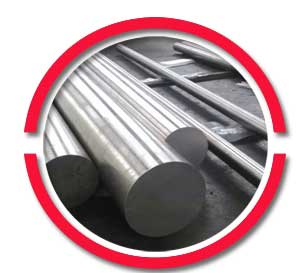

AISI 410 3-100mm diameter hot-rolled stainless steel black bar
AISI 410 3-100mm diameter hot-rolled stainless steel black bar

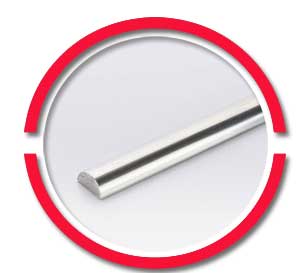

SUS 420 bright stainless steel half round bar
SUS 420 bright stainless steel half round bar



SS 420 Rods Attributes
  • Well-known for the elevated temperatures
  • Outstanding thermal stability
  • Comes with tolerance limit ideal for pitting/ crevice/ stress cracking resistance
  • Strong finish
  • Resists corrosion/ oxidation/ rust at corrosive environment
  • Easily machineable/ formable with low machining cost



UNS S42000 AISI 420 Flat bar Size table
Stainless Steel 420 Flat bar – metric sizes and weights
Flat Size
KG’s per Metre
Standard Length (metres)
Colour Code
10 x 3
0.24
6.0
Blue
13 x 3
0.31
6.0
Blue
13 x 5
0.46
6.0
Orange
16 x 3
0.38
6.0
Blue
16 x 5
0.64
6.0
Orange
16 x 8
1.03
6.0
Red
20 x 3
0.48
6.0
Blue
20 x 5
0.81
6.0
Orange
20 x 6
0.97
6.0
White
20 x 10
1.61
6.0
Yellow
25 x 3
0.60
6.0
Blue
25 x 5
1.01
6.0
Orange
25 x 6
1.21
6.0
White
25 x 8
1.61
6.0
Red
25 x 10
2.01
6.0
Yellow
25 x 12
2.41
6.0
Pink
32 x 3
0.77
6.0
Blue
32 x 5
1.29
6.0
Orange
32 x 6
1.55
6.0
White
32 x 8
2.06
6.0
Red
32 x 10
2.58
6.0
Yellow
32 x 12
3.09
6.0
Pink
40 x 3
0.97
6.0
Blue
40 x 5
1.61
6.0
Orange
40 x 6
1.93
6.0
White
40 x 8
2.58
6.0
Red
40 x 10
3.22
6.0
Yellow
40 x 12
3.86
6.0
Pink
40 x 16
5.15
6.0
Grey
40 x 20
6.14
6.0
Green
50 x 3
1.21
6.0
Blue
50 x 5
2.01
6.0
Orange
50 x 6
2.41
6.0
White
50 x 8
3.22
6.0
Red
50 x 10
4.02
6.0
Yellow
50 x 12
4.83
6.0
Pink
50 x 16
6.44
6.0
Grey
50 x 20
8.05
6.0
Green
50 x 25
10.1
6.0
Purple
65 x 3
1.57
6.0
Blue
65 x 5
2.62
6.0
Orange
65 x 6
3.14
6.0
White
65 x 8
4.18
6.0
Red
65 x 10
5.23
6.0
Yellow
65 x 12
6.28
6.0
Pink
65 x 16
8.37
6.0
Grey
65 x 20
10.5
6.0
Green
65 x 25
13.1
6.0
Purple
75 x 5
3.02
6.0
Orange
75 x 6
3.62
6.0
White
75 x 8
4.83
6.0
Red
75 x 10
6.04
6.0
Yellow
75 x 12
7.24
6.0
Pink
75 x 16
9.66
6.0
Grey
75 x 20
12.1
6.0
Green
75 x 25
15.1
6.0
Purple
75 x 40
24.1
6.0
Yellow
90 x 5
3.62
6.0
Orange
90 x 6
4.35
6.0
White
90 x 8
5.79
6.0
Red
90 x 10
7.24
6.0
Yellow
90 x 12
8.69
6.0
Pink
100 x 5
4.02
6.0
Orange
100 x 6
4.83
6.0
White
100 x 8
6.44
6.0
Red
100 x 10
8.05
6.0
Yellow
100 x 12
9.66
6.0
Pink
100 x 16
12.9
6.0
Grey
100 x 20
16.1
6.0
Green
100 x 25
20.1
6.0
Purple
100 x 50
40.2
6.0
Green
110 x 6
5.31
6.0
White
110 x 8
7.08
6.0
Red
110 x 10
8.85
6.0
Yellow
110 x 12
10.6
6.0
Pink
130 x 5
5.23
6.0
Orange
130 x 6
6.28
6.0
White
130 x 8
8.37
6.0
Red
130 x 10
10.5
6.0
Yellow
130 x 12
12.6
6.0
Pink
130 x 16
16.7
6.0
Grey
130 x 20
20.9
6.0
Green
130 x 25
26.2
6.0
Purple
150 x 5
6.04
6.0
Orange
150 x 6
7.24
6.0
White
150 x 8
9.66
6.0
Red
150 x 10
12.1
6.0
Yellow
150 x 12
14.5
6.0
Pink
150 x 16
19.3
6.0
Grey
150 x 20
24.1
6.0
Green
150 x 25
30.1
6.0
Purple
150 x 50
60.4
6.0
Green
180 x 5
7.24
6.0
Orange
180 x 6
8.69
6.0
White
180 x 10
14.5
6.0
Yellow
180 x 12
17.4
6.0
Pink
180 x 16
23.2
6.0
Grey
180 x 20
29.0
6.0
Green
180 x 25
36.2
6.0
Purple
200 x 6
9.66
6.0
White
200 x 8
12.9
6.0
Red
200 x 10
16.1
6.0
Yellow
200 x 12
19.3
6.0
Pink
200 x 16
25.7
6.0
Grey
200 x 20
32.2
6.0
Green
200 x 25
40.3
6.0
Purple
250 x 6
12.1
6.0
White
250 x 8
16.1
6.0
Red
250 x 10
20.1
6.0
Yellow
250 x 12
24.1
6.0
Pink
250 x 16
32.2
6.0
Grey
250 x 20
40.2
6.0
Green
250 x 25
50.3
6.0
Purple
300 x 6
14.5
6.0
White
300 x 8
19.3
6.0
Red
300 x 10
24.1
6.0
Yellow
300 x 12
29.0
6.0
Pink
300 x 16
38.6
6.0
Grey
300 x 20
48.3
6.0
Green
300 x 25
60.4
6.0
Purple



ASTM A276 type 420 Stainless Steel Hex Bar Standard Sizes
SS hex bar Size in Inches
SS hex bar Wt per Ft
SS hex bar Wt per 12′
3/16″
0.104
1.248
1/4″
0.180
2.160
5/16″
0.290
3.480
3/8″
0.420
4.920
7/16″
0.560
6.72
1/2″
0.740
8.880
9/16″
0.930
11.16
5/8″
1.150
13.80
11/16″
1.390
16.68
3/4″
1.660
19.92
13/16″
1.950
23.40
7/8″
2.300
27.60
15/16″
2.600
31.20
1″
2.90
34.80
1-1/16″
3.30
39.60
1-1/8″
3.700
44.40
1-1/4″
4.600
55.20
1-5/16″
5.100
61.20
1-3/8″
5.600
67.20
1-7/16″
6.100
73.20
1-1/2″
6.600
79.20
1-5/8″
7.800
93.60
1-3/4″
9.030
108.36
1-7/8″
10.400
124.80
2″
11.80
141.60
2-1/4″
14.920
179.04
2-3/8″
16.920
203.04
2-1/2″
18.42
221.04
3″
26.53
318.36
ASME SA 479 grade 420 Square Bar Size Table
SS 420 Square bar – metric sizes and weights
Square bar Size
KG’s per Metre
Standard Length (metres)
Colour Code
10 x 10
0.81
6.0
Yellow
12 x 12
1.16
6.0
Pink
16 x 16
2.06
6.0
Grey
20 x 20
3.22
6.0
Green
25 x 25
5.03
6.0
Purple
32 x 32
8.24
6.0
Orange
40 x 40
12.8
6.0
Yellow
50 x 50
20.12
6.0
Green





DIN 1.4021 Round Bar Size Chart
Type
SIZES (mm)
SIZES (Inches)
ISO Tolerance
Cold Drawn and Polish
3.00 – 75.00
1/8″ – 3.00″
h8-h9-h10-h11
Cold Drawn and Ground
10.00 – 75.00
5/6″ – 2.50″
h8-h9-h10-h11
Peeled and Polished
40.00 – 150.00
1.50″ – 6.00″
h11, h11-DIN 1013
Peeled and Ground
20.00 – 50.00
3/4″ – 2.00″
h9-h10-h11

Cut to size on request (tolerance +2/-0 mm). 420 Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm.

5.0
45.0
6.0
50.0
7.0
55.0
8.0
60.0
9.0
65.0
10.0
70.0
12.0
75.0
16.0
80.0
20.0
90.0
25.0
100.0
30.0
130.0
35.0
160.0
40.0
200.0
Size chart of AISI 420 Stainless Steel Hollow Bar
Size mm kg/m Size mm kg/m
20 x 20 x 2.0 1.12 20 x 20 x 2.5 1.35
25 x 25 x 1.5 1.06 25 x 25 x 2.0 1.43
25 X 25 X 2.5 1.74 25 X 25 X 3.0 2.04
30 X 30 X 2.0 1.68 30 X 30 X 2.5 2.14
30 X 30 X 3.0 2.51 40 x 40 x 1.5 1.81
40 x 40 x 2.0 2.31 40 x 40 x 2.5 2.92
40 x 40 x 3.0 3.45 40 x 40 x 4.0 4.46
40 x 40 x 5.0 5.40 50 x 50 x 1.5 2.28
50 x 50 x 2.0 2.93 50 x 50 x 2.5 3.71
50 x 50 x 3.0 4.39 50 x 50 x 4.0 5.72
50 x 50 x 5.0 6.97 60 x 60 x 3.0 5.34
60 x 60 x 4.0 6.97 60 x 60 x 5.0 8.54
60 x 60 x 6.0 9.45 70 x 70 x 3.0 6.28
70 x 70 x 3.6 7.46 70 x 70 x 5.0 10.11
70 x 70 x 6.3 12.50 70 x 70 x 8 15.30
75 x 75 x 3.0 7.07 80 x 80 x 3.0 7.22
80 x 80 x 3.6 8.59 80 x 80 x 5.0 11.70
80 x 80 x 6.0 13.90 90 x 90 x 3.0 8.01
90 x 90 x 3.6 9.72 90 x 90 x 5.0 13.30
90 x 90 x 6.0 15.76 90 x 90 x 8.0 20.40
100 x 100 x 3.0 8.96 100 x 100 x 4.0 12.00
100 x 100 x 5.0 14.80 100 x 100 x 5.0 14.80
100 x 100 x 6.0 16.19 100 x 100 x 8.0 22.90
100 x 100 x 10 27.90 120 x 120 x 5 18.00
120 x 120 x 6.0 21.30 120 X 120 X 6.3 22.30
120 x 120 x 8.0 27.90 120 x 120 x 10 34.20
120 X 120 X 12 35.8 120 X 120 X 12.5 41.60
140 X 140 X 5.0 21.10 140 X 140 X 6.3 26.30
140 X 140 X 8 32.90 140 X 140 X 10 40.40
140 X 140 X 12.5 49.50 150 X 150 X 5.0 22.70
150 X 150 X 6.3 28.30 150 X 150 X 8.0 35.40
150 X 150 X 10 43.60 150 X 150 X 12.5 53.40
150 X 150 X 16 66.40 150 X 150 X 16 66.40
180 X 180 X 5 27.40 180 X 180 X 6.3 34.20
180 X 180 X 8 43.00 180 X 180 X 10 53.00
180 X 180 X 12.5 65.20 180 X 180 X 16 81.40
200 X 200 X 5 30.50 200 X 200 X 6 35.8
200 x 200 x 6.3 38.2 200 x 200 x 8 48.00
200 x 200 x 10 59.30 200 x 200 x 12.5 73.00
200 x 200 x 16 91.50 250 x 250 x 6.3 48.10
250 x 250 x 8 60.50 250 x 250 x 10 75.00
250 x 250 x 12.5 92.60 250 x 250 x 16 117.00
300 x 300 x 6.3 57.90 300 x 300 x 8 73.10
300 x 300 x 10 57.90 300 x 300 x 8 90.70
300 x 300 x 12.5 112.00 300 x 300 x 16 142.00
350 x 350 x 8 85.70 350 x 350 x 10 106.00
350 x 350 x 12.5 132.00 350 x 350 x 16 167.00
400 x 400 x 10 122.00 400 x 400 x 12 141.00
400 x 400 x 12.5mm 152.00 400 x 400 x 16 192

Buy your sizes from our SS 420 Bright Bars, pump shaft, cold / hot rolled black bar



Specified Minimum Yield Strength Of 420 stainless steel round bar
Grade Tensile Strength (ksi) min Elongation (% in 50mm) min Yield Strength 0.2% Proof (ksi) min Hardness
420 95,000 25 50,000 175



DIN 1.4021 Bar in cut to sizes, Supplier of SUS 420 Round Bar as per International standard



Chemical Equation Of UNS S42000 AISI 420 Bar
Grade C Mn Si P S Cr
420 min. – – – – – 12.0
max. 0.15 1.0 1.00 0.04 0.03 14.0



Equivalent Specification Of ASTM A276 type 420 Flat Bar
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 420 1.4021 S42000 SUS 420 J1 420S29 – – FeMi35Cr20Cu4Mo2
Documentations Provide with SUS 420 Round Bar
  • Commercial invoice
  • Packing list- like number of boxes, quantity, weight, gross weight
  • Quality assurance test report
  • Raw material test report
  • Specification test
  • Laboratory test report
