17-7 ph stainless steel rod, AMS 5644 Steel 17-7 PH Hex Bar, UNS S17700 Flat bar Suppliers in China.
Stainless Steel 17-7 Bright /Square and Cold Finished Bars Manufacturers.
17-7 Ph Stainless Steel Round Bar is made up of a chromium, nickel aluminum alloy. High Temperature Fasteners Inc. is a leading manufacturer and supplier of the different types of bars from this material grade. The material has carbon, phosphorus, silicon, iron, manganese, sulfur, 17% chromium, 7% nickel and 0.75% aluminum in the composition. The 17-7 Ph Stainless Steel Rod has 1170MPa minimum tensile strength and 965MPa minimum yield strength.
These are very high values compared to ordinary austenitic stainless steels. Due to these high mechanical values, the AMS 5644 Steel 17-7 PH Hex Bar and other types are used in aerospace, chemical processing equipment, oil and gas, petroleum refinery, food grade stainless steel equipment and in other general metalworking applications as well. The dimensions of the bars are covered by EN, DIN, ASTM, AISI, ASME and other international standards.
The UNS S17700 Flat Bar can come in different finishes like black, bright polished and so on with the surface treated with hot rolled pickled, sand blasting finished, cold drawn, bright and so on. The Stainless Steel 17-7 Square Bars are also used in the similar capacity but with having much more strength due to the shape. As a leading supplier and manufacturer, we produce and supply the bars in all different types. Please feel free to contact us for more information and pricing.

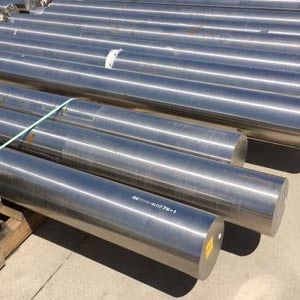

17-7 Ph Stainless Steel Round Bar

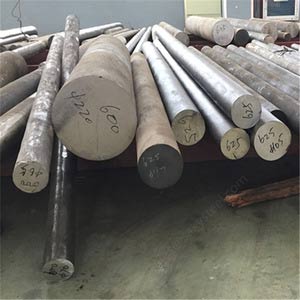

UNS S17700 Rod

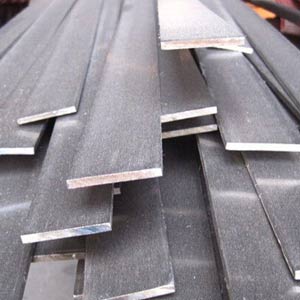

AMS 5644 Steel 17-7 PH Flat Bar
- Dimension : EN, DIN, JIS, ASTM, BS, ASME, AISI
- Grade : 17-7 PH (UNS No. S17700) Round Bars
- Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
- Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
- Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
- Application : Chemical process, Food processing, Petrochemical, Pollution control, Pulp and Paper, Refining
- Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished.
- Our 17-7 PH Round Bars conforms to NACE MR0175/ISO 15156
- UNS S17700
- AMS 5528
- ASTM A 693
- ASME SA 693
- W.NR 1.4541
- PWA-LCS
- GE-S400/1000
- RR SABRe Edition 2
- DFARS Compliant
- SAE AMS 5528
- 17-7 (® AK Steel)
- ATI 17-7 (™ Allegheny Technologies)
- T-17-7 Stainless Steel (ThyssenKrupp VDM)
| Grade | C | P | Si | Ni | Cu | Fe | Mn | S | Cr | AL |
| SS 17-7 PH | .09 | .04 | 1.0 max | 6.50 – 7.75 | – | Bal | 1.0 max | 0.04 | 16.0 – 18.0 | .75 – 1.50 |
The physical properties of stainless steel grade 17-7 PH are tabulated below.
|
Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Density
|
7.80 g/cm3
|
0.282 lb/in3
|
The following table shows mechanical properties of stainless steel grade 17-7 PH (TH1050, bar and forgings).
|
Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Tensile strength
|
1170 MPa
|
170000 psi
|
|
Yield strength
|
965 MPa
|
140000 psi
|
|
Modulus of elasticity
|
204 GPa
|
29600 ksi
|
|
Poisson’s ratio
|
0.27-0.30
|
0.27-0.30
|
|
Elongation at break
|
6%
|
6%
|
|
Hardness, Rockwell C
|
38
|
38
|
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-7 PH | – | S17700 |
The thermal properties of stainless steel grade 17-7 PH are given in the following table.
|
Properties
|
Metric
|
Imperial
|
|---|---|---|
|
Thermal conductivity
|
16.4 W/mK
|
114 BTU in/hr.ft2.°F
|
|
Thermal expansion co-efficient (@0.000-100°C/32-212°F)
|
11 µm/m°C
|
6.11 µm/m°C
|
- Aerospace applications
- Chemical processing equipment
- Oil and petroleum refining equipment
- Food grade stainless steel for processing equipment
- General metalworking
|
|
