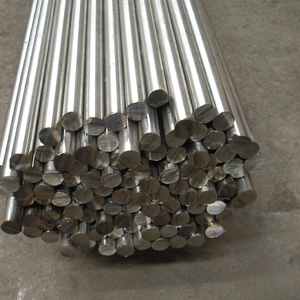

430f Stainless Steel Round Bar

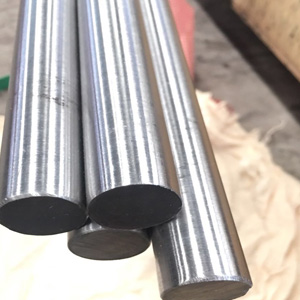

ASTM A276 UNS S43020 Rod manufacturer in China

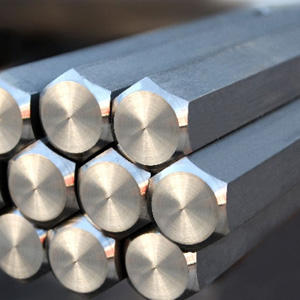

ASTM A479 DIN 1.4104 Hex Bar, Flat Bars available in 0.5m – 6m Lengths



Check dimension table of ASME SA 276 AISI 430F Square Bar, Buy SS 430F Bright Bar at factory price

 Unlike their austenitic stainless steel counterparts, 430F, which belongs to ferritic class exhibit superior resistance to stress related corrosion cracking. As opposed to austenitic class stainless steels, the 430F stainless steel round bar has better thermal conductivity. This is an advantage for components when used for applications such as heat exchangers. While the chemistry of alloy 430 and 430F stainless steel rods is similar, the main difference between both of them is that alloy 430F has an increase in the content of sulfur. When sulfur is added to the alloy of grade JIS SUS 430F black bar, its machinability is a property that sees a dramatic surge.

Though this sulfur containing alloy lacks the formability properties that accompany grade 430SS, it retains moderate ductility, which can prevent cracking by failure caused due to high pressure or stresses. The high content of chromium in astm a276 type 430F flat bar has good resistance to corrosion caused by pitting. Another characteristically important property of ferritic steels like these is that the AISI 430F threaded bar exhibits magnetic behaviour. Unlike austenitic steels that have zero magnetic properties, the benefit of using an ASTM A479 UNS S43020 hex bar is that their magnetism could be put to use in certain applications, making it an asset. Similar to most ferritic stainless steel alloys, the  DIN 1.4104 square bar can neither be hardenable by heat treatment; nor can the ss 430F bright bar be strengthened by cold work.



---

Standards	ASTM A276, A479, A582, GB4226-84, GB/T1220-2007, JISG4311-91, JIS G4318-98, EN 10095-99, GB4226-84, EN10088-3-2005, JIS G430F3-2005, etc
Diameter	2.0-400mm
Type	Round bar, rod, square bar, flat bar, hexagon bar, angle bar, channel bar, threaded bar
Range	Range – 3.17mm to 350mm dia
Stainless Steel Round Bar type	ASTM A276 430F stainless steel round bars
Surface	bright round bar, pickled round bar, black round bar
Package Details	Standard seaworthy package(wooden boxes package,pvc package, or other package)
Length	3000mm, 6000mm or according to the customer’s requirement.
Technique	Forged/Hot Rolled/Cold Drawn/Peeled



Find your choice of sizes from our SUS 430F forged bar stock



---

STANDARD	UNS	JIS	DIN	WERKSTOFF NR.	FRENCH
SS 430F	S43020	SUS 430F	1.4104	1.4104	Inox 430F



---

Density	Tensile Strength	Yield Strength (0.2%Offset)	Elongation	Hardness (Brinell)
8.0 g/cm3	552	379	25	262



---

Grade	C	Mn	Si	P	Cr
SS 430F	0.12 Max	1.25 Max	1.00 Max	0.06 Max	18.0



Annealed and age hardened JIS 430F Hot Rolled and Cold Rolled Rod exporter from China







---





---

• Food processing equipment
• Bearings
• Aircraft parts, exhaust manifolds
• Instruments
• Fasteners
• Gears
• Screws
• Mining machinery
• Shafts
• Pump
• Fittings
• Screw machine products
• Valves



---





---
